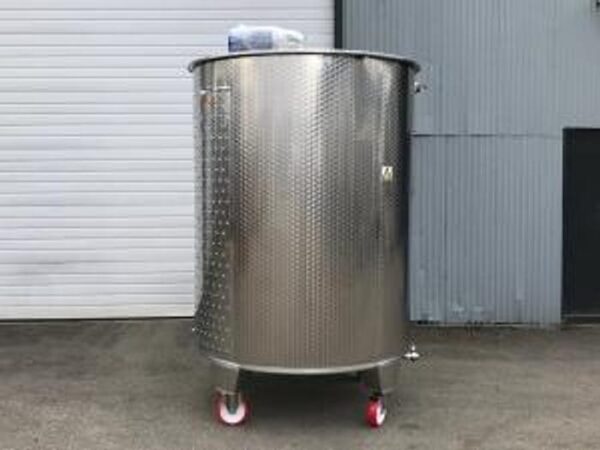

1050 Gallon Jacketed Mix Tank On Wheels

1050 Gallon Jacketed Mix Tank On Wheels

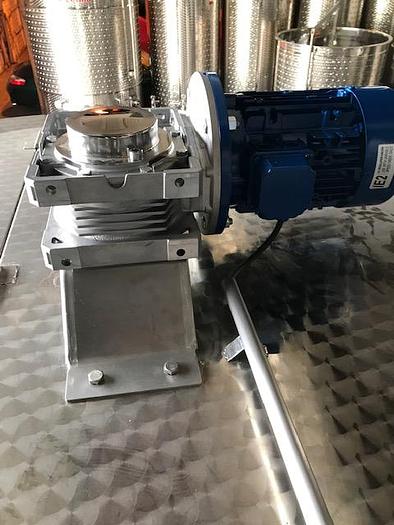

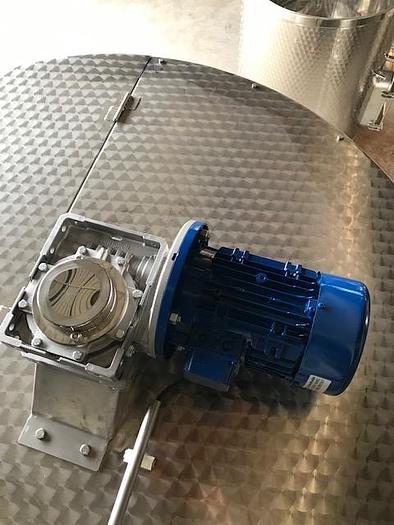

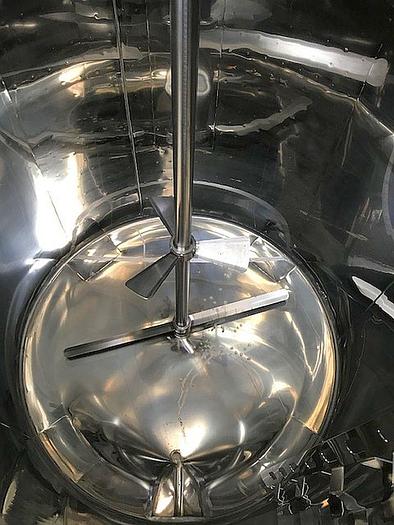

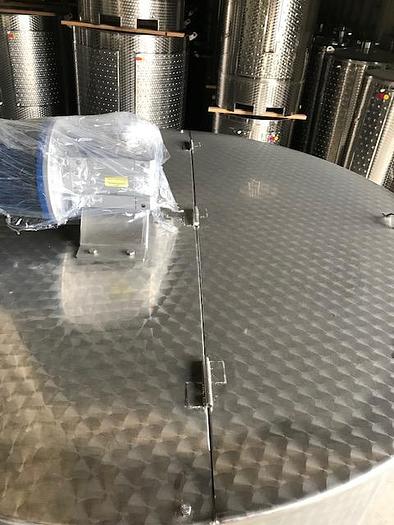

Specifications as follows: — mixtank — volume: 4000 lit — coat diameter 1593 mm, height 2000 mm — total height approx. 2700 mm — on wheels — folding cover — conical off-centered bottom — gearmotor 2.2 kW — shaft with blade paddles — baffle — type plate with note card — cooling jacket, 2 m2, max. 2.5 bar, u-shape style — thermowell — total discharge, butterfly valve, tri-clamp 1.5″ — material AISI 304, BA, mirror inside, circle brushed outside
