6000 gallon stainless jacketed mix tank

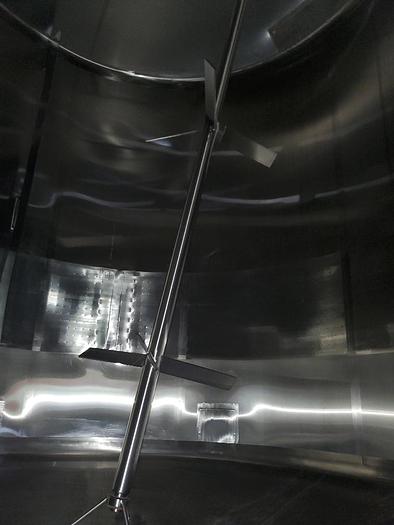

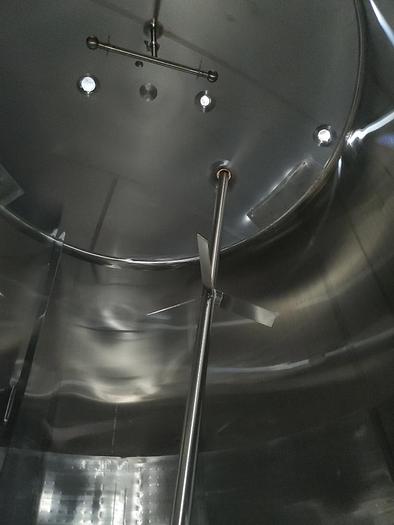

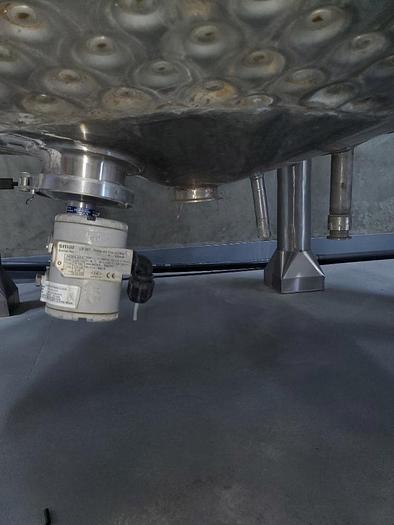

Stainless Steel 6,000 Gallon Agitated Tank with Dish Bottom, manufactured by Feldmeier. Vessel measures 10′ diameter x 10′ high with dish top and bottom. Includes stainless steel dimpled jacket wrapped around vessel, rated for 100 PSI @ 350 degrees F / -20 degrees F. Offered with bridge mount for top-entering agitation, installed at angle with clockwise rotating paddles, shaft is secured with bottom bearing support. Vessel is 304 stainless steel construction, includes top and side-bottom manways with clamped doors. Mounted on stainless steel pipe legs. Overall height with agitator drive is 196″ high.
