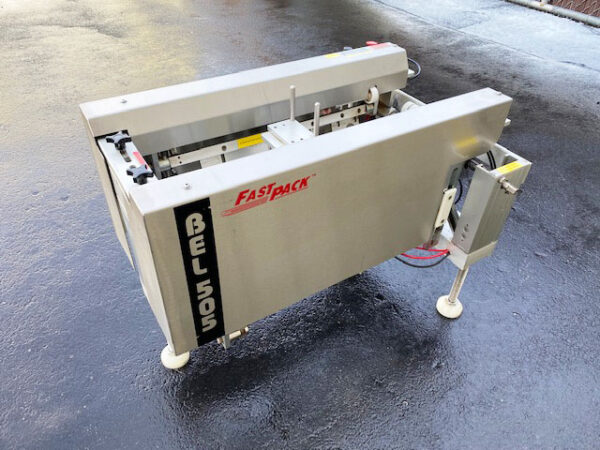

Belcor 150 Case Sealer with 505 Case Erector

Belcor 150 Case Sealer with 505 Case Erector

– Manufacturer: Belcor Wexxar Packaging Inc., BC Canada

– Model/Serial Number 505-021308
– Pneumatic Operation
– Adjustable for various size RSC corrugated boxes (consult factory for specific case capabilities)

   Case Length: Min. 8”, Max. 26.5”

   Case Width: Min. 6”, Max. 16”

   Case Height: Min. 3.5”, Max. –
– (3) Threaded Leveler Legs
– Operator Controls with E-Stop
– Dimensions 49” L x 31” W x 35” H @ 300 lbs.

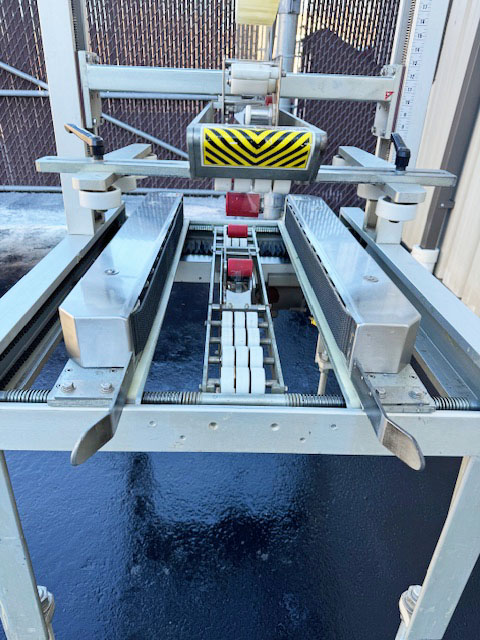

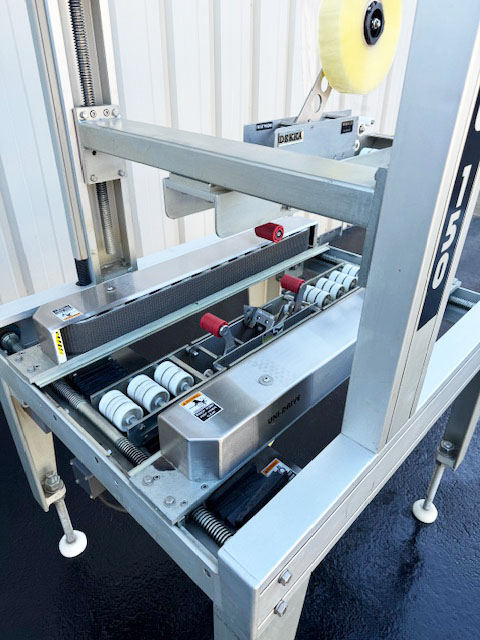

Belcor Model 150 Top & Bottom Case Sealer – Taper

– Manufacturer: Belcor Wexxar Packaging Inc., BC Canada

– Model 150
– Serial Number 150-9664
– Factory rated up to 30 cases per minute

– Includes (2) Dekka 22 Tape Heads for 2” Wide Tape

– Uni-Drive Side Gripper Belts for Case Transfer
– Handwheel adjustment for various length, width and height RSC boxes

– Adjustable for various size RSC corrugated boxes (consult factory for specific case capabilities)
Case Length: Min. 8”, Max. –

                Case Width: Min. 5-1/2”, Max. 17-3/8”

                Case Height: Min. 4”, Max. 21”

– (4) Threaded Leveler Legs (levelers measure 12” long each)
– Conveyor Elevation 33” (adjustable)
– Operator Controls

– Electrical 120 Volt, 1 Ph, 60 Hz, 10 Amp
– Overall Dimensions 44” L x 36” W x 68” H
