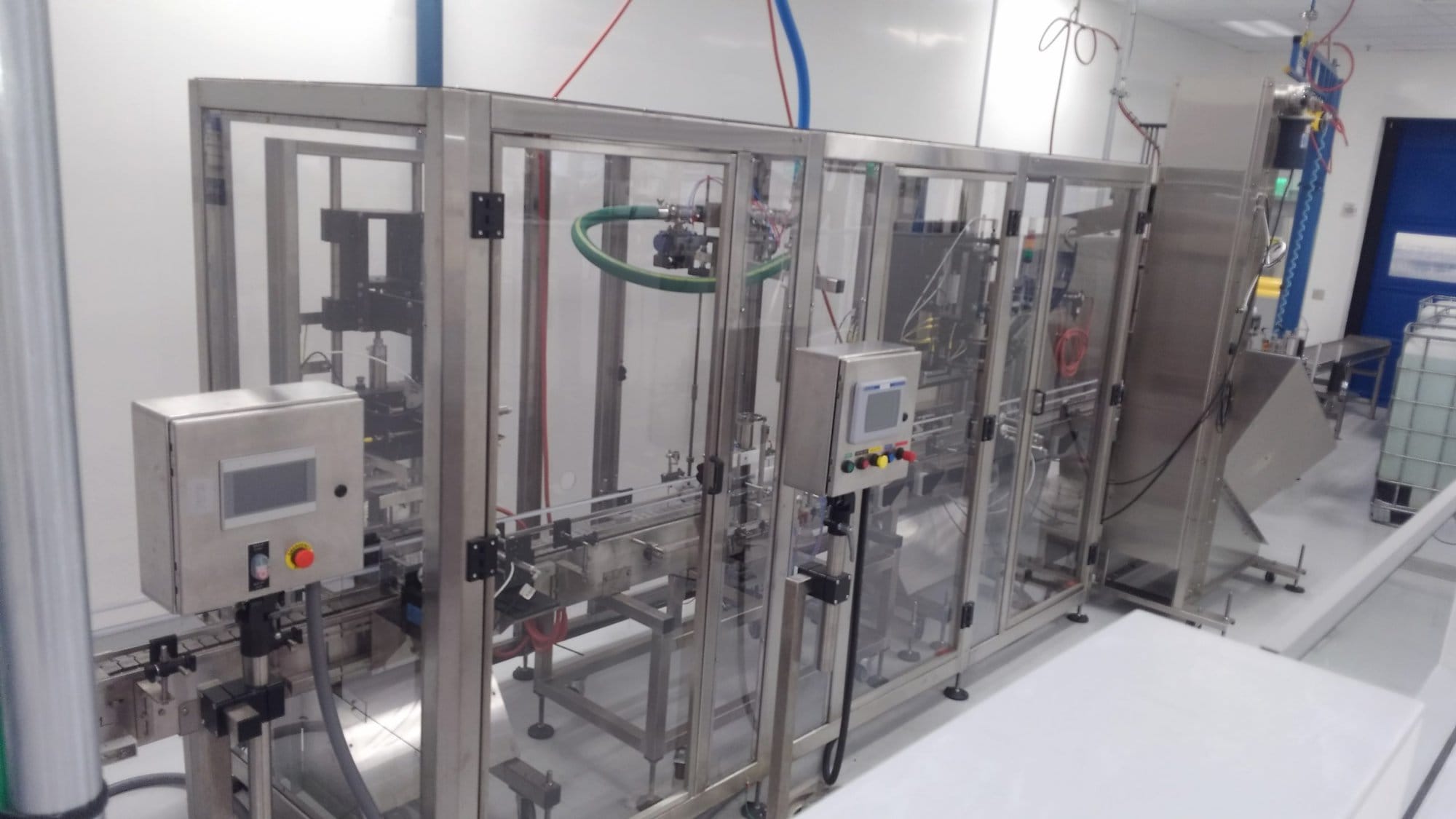

Oden Liquid Filling Line

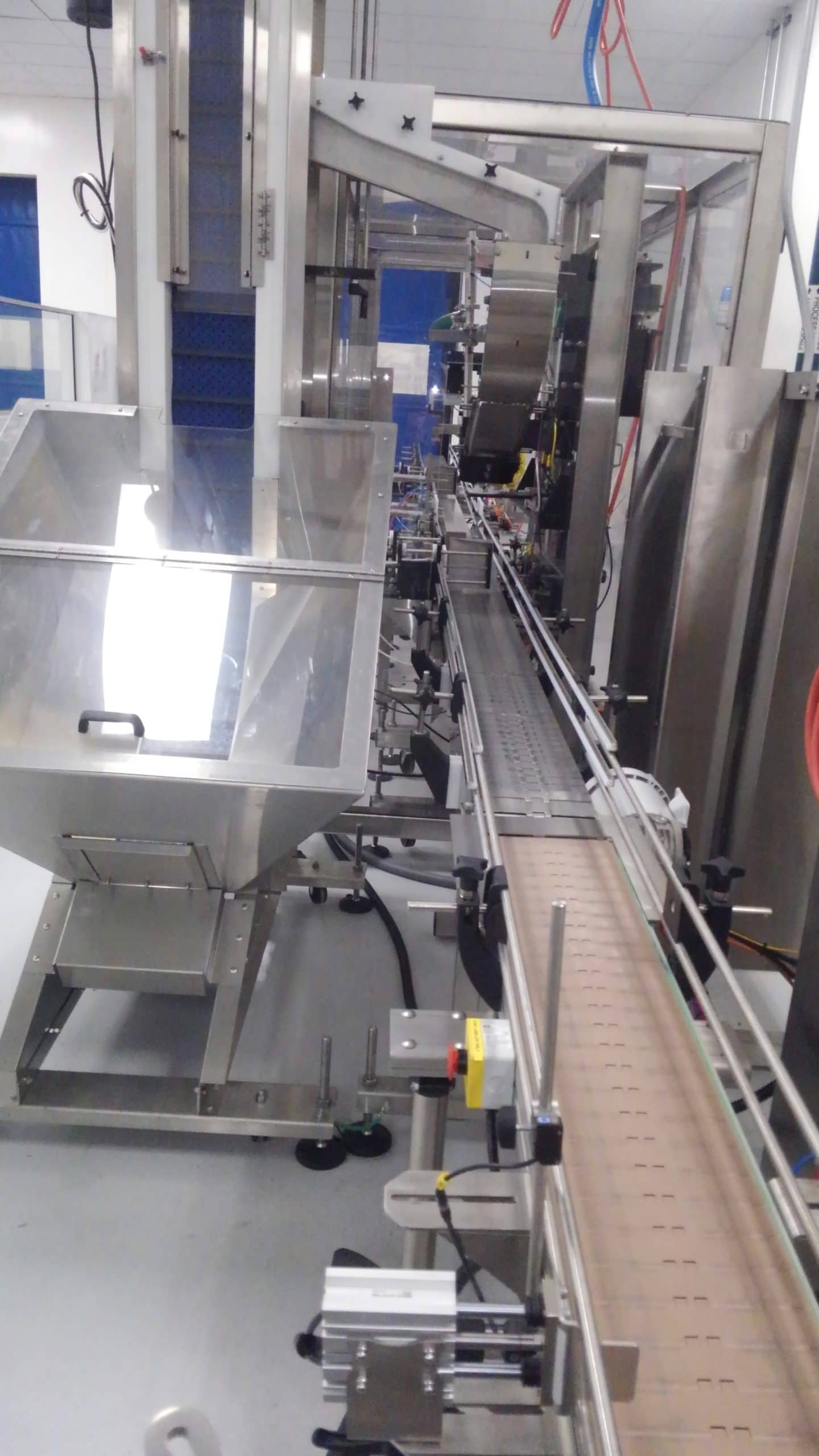

Oden Liquid Filling Line2

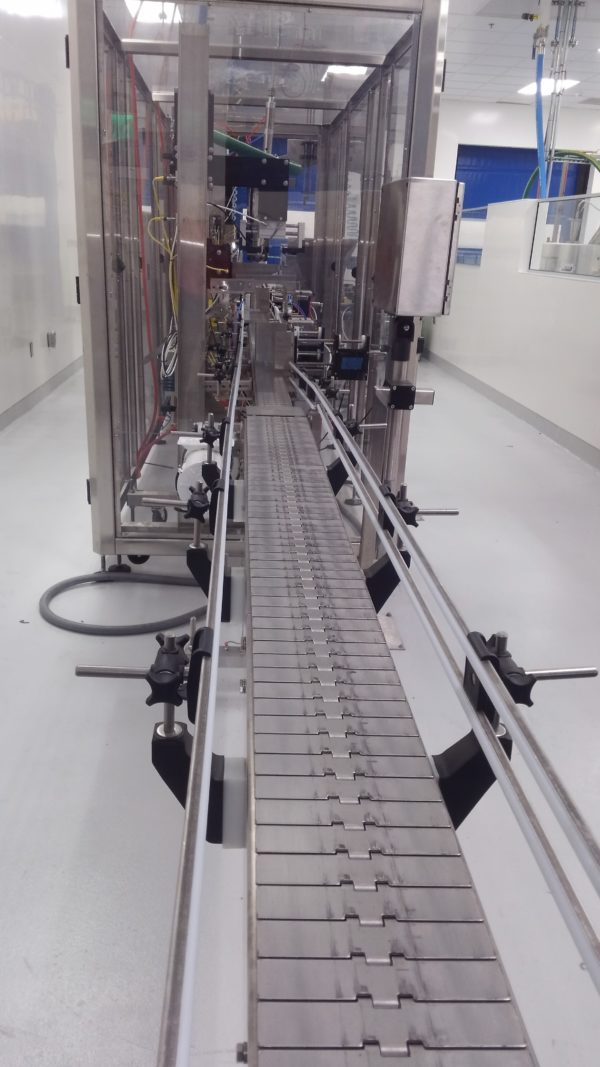

Oden Liquid Filling Line3

Oden Liquid Filling Line

Oden Liquid Filling Line

Model:
ANW1-25-ID
Make:
Oden
Year:
2019

  • Filler- 2019 Oden ANW1-25-ID Filling Machine
    -Allen Bradley Panelview Plus 700 Controls
    -SS Frame with Leveling Feet and Casters
    -10′ x 7.5″ Infeed Conveyor
    -10.5′ x 4.5″ Filler Conveyor
    -10′ x 7.5″ Outfeed/Capper Conveyor
    -2″ Gen2 Inward Opening Style Nozzel
    -316 SS Outfeed Plumbing
    -Dual Point Indexing Systems on 1″ x 1″ Index Beam
    -Diving Nozzel System with 14″ Stroke
    -LMS on Infeed, LMS on Outfeed, and No Bottle No Fill Sensor
    -Swing out CIP Cup with Drain Port
    -Safety Enclosure: SS Frame, Clear Polycarbonate Panels, 6 Guard Doors with Interlocks
    -Controller Power Requirements: 220V
    -Machine Electrical Requirements: 208V, 1P, 15A
  • Capper- 2019 Oden DPR
    -Capping Rate: Approx 15 Products per Minute
    -E-Pak Outfeed/Labeler Conveyor
    -Electrical Requirements: 208V, 1P, 60Hz, 20A
    -Air Requirements: 80-100 psi at 6-12 CFM
    -Dimensions: 39″ x 36″ x 86″
    -Weight: 2000 lbs
  • Labeler- 2018 CDA Ninon Side
    -Running Temp: 50°F – 86°F
    -Electrical Requirements: 208-250 V, 50-60Hz, 1P, 16A
    -Air Requirements: 4 m³/hour at 4 bars (58 max psi)
    -Conveyor height: 37″
    -Labelled Products: Cylindrical & Flat Products
    -Production rate: 1,500-2,500 per hour
    -Roll Dimensions:
    Inside Diameter: 75mm (2.95″)
    Max Diameter: 260mm (10.2″)
    Max Roll Height: 160mm (6.3″)
    Space Between Labels: 3-5mm (0.12-0.2″)
    Quality of the Support Band: 90g/m² (3.17 oz)
    Roll Storage Temp Range: Dry 59°F-65°F
    -Weight: 550 lbs.
    -Dimensions: 98.4″ x 63″ x 47.2″
  • -Line was used to package 10L containers, filled by weight, and filled with liquid cosmetics.
    -Manuals included
    -Runtime hours: 4-5 hours, little use
