Viking Masek FFS

Description

1. Infeed:
Vacuum Loader” free flow granular conveying system:         $ 9 ,920
Vibra – Pulse filter cleaning system
Includes 14” diameter welded aluminum receiver housing, high level control of receiving hopper
Gravity flapper valve, high level for receiving hopper
Brushless motor with variable speed
Pulse cleaning system
20’ flexible hose with one (1) pick – up lance
Three (3) extra 14” PTFE felt filters
14” white gasket
Extra 20’ of 2” I.D. PVC clear flexible hose with ground wire
Aluminum transition hopper and lid assembly
A flexible sleeve will connect the transition hopper to the auger hopper.
Entire  Vacuum feed system will convey material at a rate of 1,800 lbs. per hour. Ceiling
hung by customer.

2. SA600  Sachet Packaging machine,         Servo Auger     Filler and accessories:

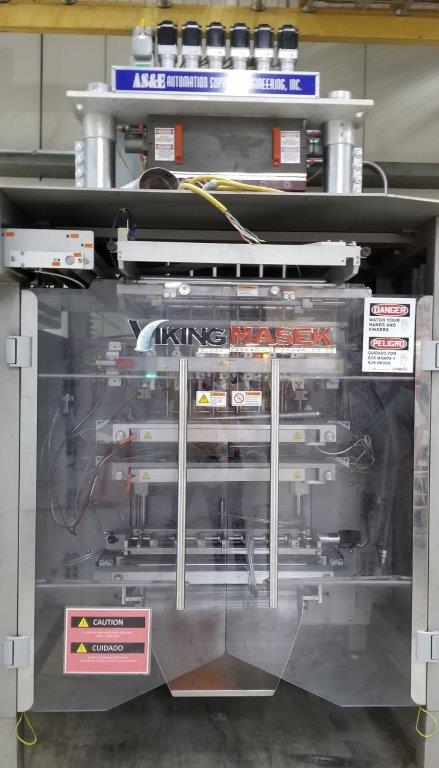

Viking Masek SA600 Intermittent Motion Sachet Machine including:
Electrical Specifications: 480V, three phase, 60Hz., 20 amps
Pneumatic Requirements      – TBD/CFM@ 90PSI of clean, dry air (supplied by customer)
SA600 configured for        six  ( 6 ) lanes of  100 mm wide sachets

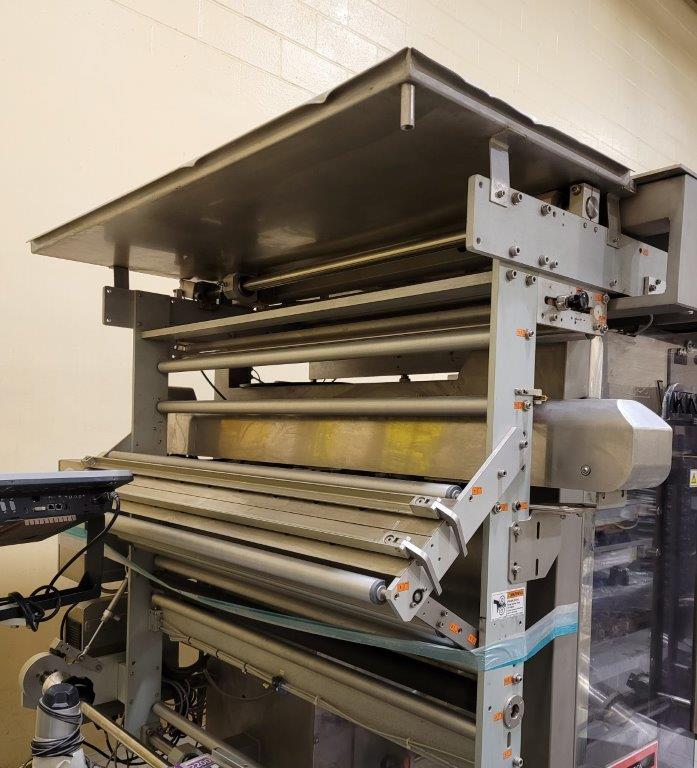

Baluff sensor for auto film tracking

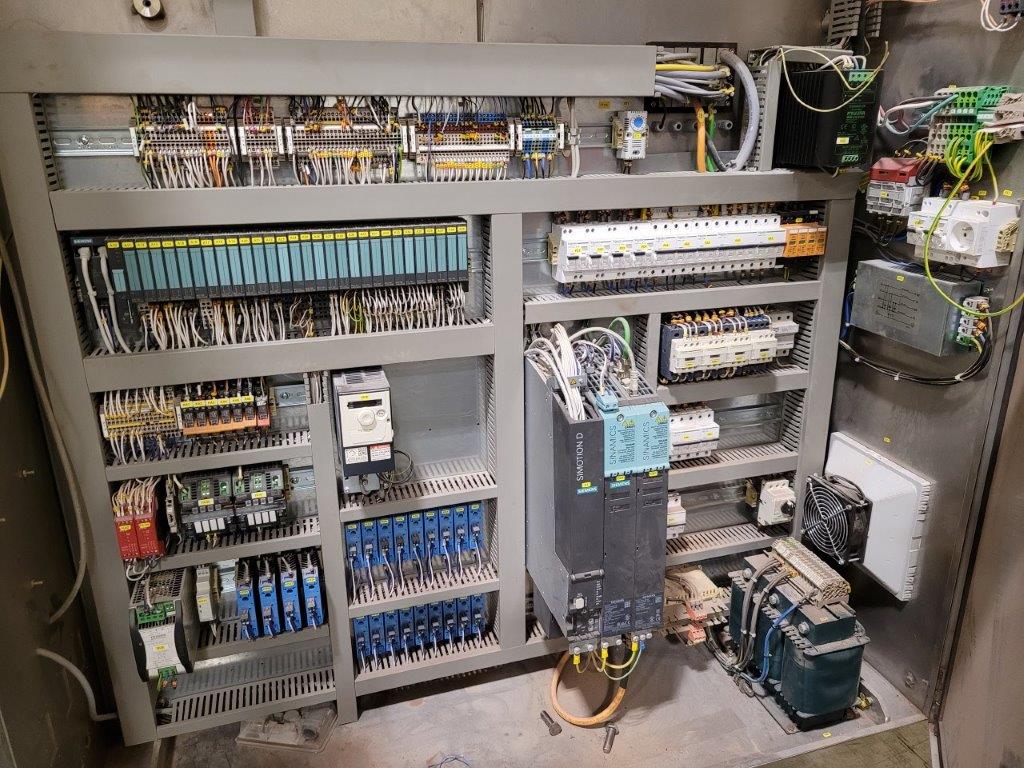

Siemens Controls, color touch screen HMI upgrade

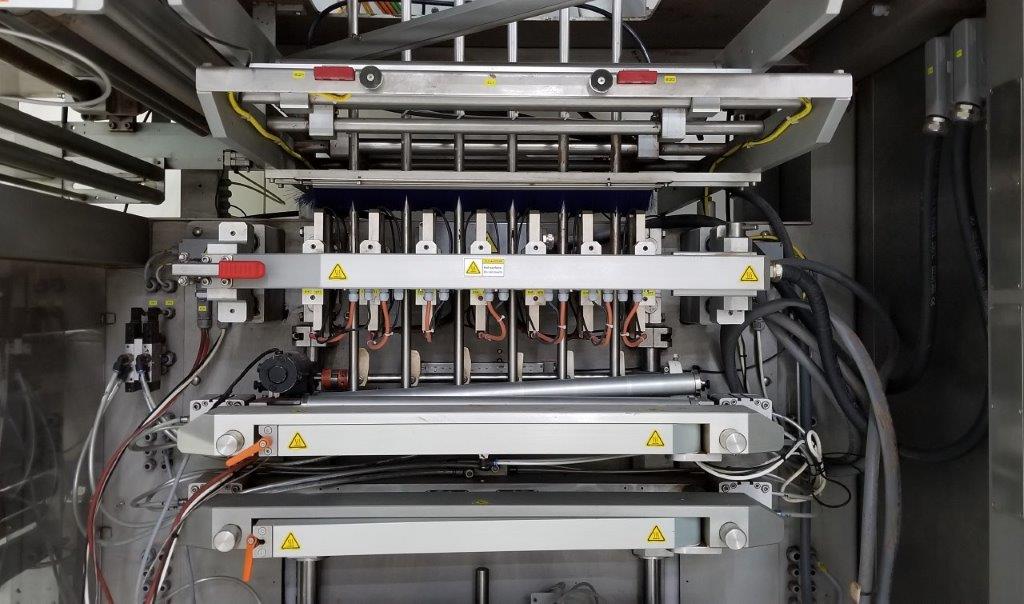

Servo Upgrade, servo jaws with horizontal end seal pattern and servo film draw down
Cold pull station
AS&E  6 lane  servo auger  filler
Straight cut across top and bottom seals
Serrated seal pattern
Tear notch
Film edge trimming with suction     – motor driven system
Stationary  heat  sealing station
Air Deflator        – Sponges
Dust extraction nozzles (customer to supply         vacuum)
Printer registration bracket
Set of operator manuals
Packing/Palletizing

3. Printer:
Markem – Imaje 1050 Dual ½” Printhead Thermal Ink Jet       Printer with Traversing Head    $36,900
Including  power  cord,  Control  Box,  (2)  ½“  print  heads,  open  ferrit  cable, 300  DPI,  variable
alphanumeric  data  and  barcode  capabilities  within  print  height   , control  box  mount,  600mm  travel
traverse, connectors and manuals.
