Pearson Model CE25 Hot Glue Case Erector

Pearson Model CE25 Hot Glue Case Erector
– Model Number CE25

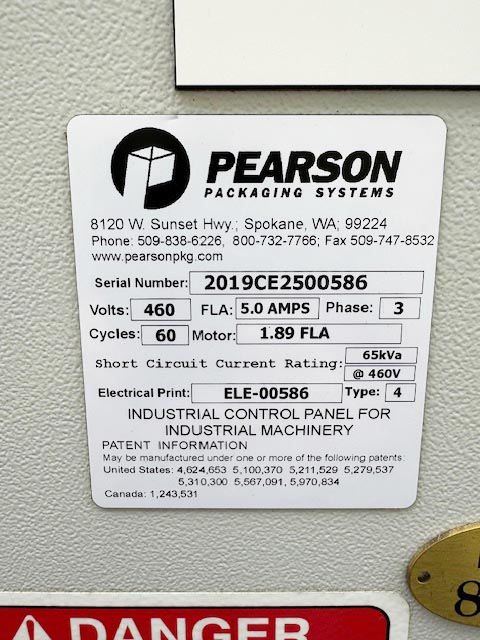

– Serial Number 2019CE2500586
– Manufacturer: Pearson Packaging Systems, Spokane WA
– RSC/HSC Hot Glue Case Erector
– Fully Automatic Case Erector for erecting & bottom sealing
– Factory rated up to 25 cases per minute

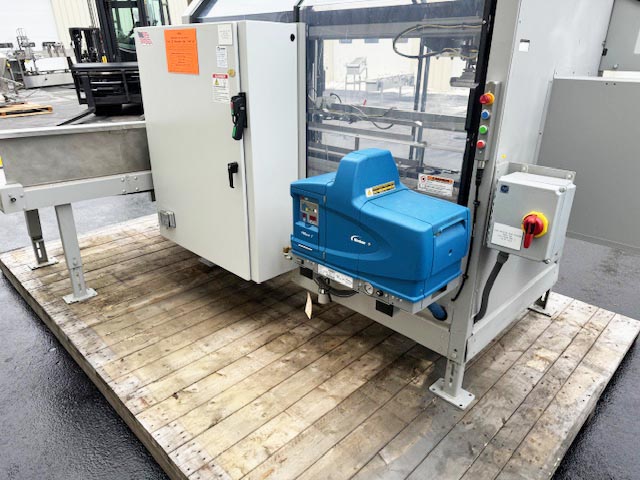

– Nordson PROBlue 7 Hot Glue System
– Electrical 460 Volt, 3 Ph, 60 Hz, 5.0 FLA,

– Allen Bradley Micro Logix PLC
– Allen Bradley PanelView Plus HMI
– Allen Bradley Variable Frequency Drive
– Operators Panel with E-Stop
– Erected Case Size Range:  8” – 24” Length, 5” – 16” Width, 3” – 18.5” Closed Depth, 6” – 21” Open Depth,

– Knocked-Down Size Range: 13 – 40” Length, 8” – 29” Width, (Bottom Flap Width 2.5” – 16”)

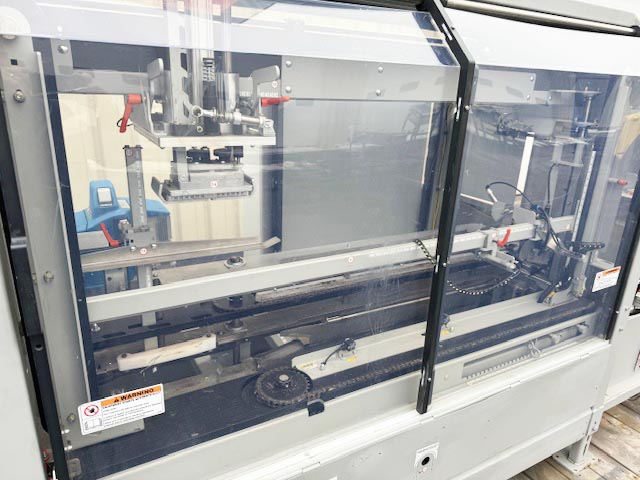

– Lexan Access Doors with Safety Interlocks
– Leg Levelers- UL® Listed Control Panel
– Overall Dimensions 150” L x 88” W x 90” H @ 2200 lbs.
– Skidded Dimensions 12’ L x 8’ W x 8’ H
