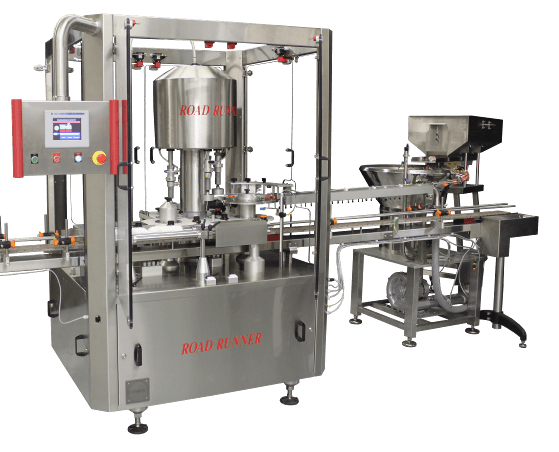

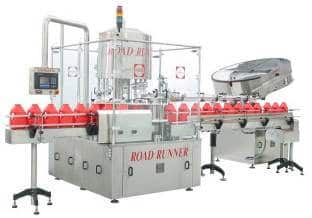

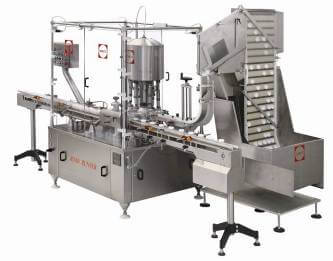

Capmatic Road Runner

Complete mechanical continuous motion capping machine for plastic or glass containers.

SKU: 1093 Category:
Add to Quote Request

Description

Complete mechanical continuous motion capping machine for plastic or glass containers.

Approximate speed of 40 to 500 containers per minute depending of sample to handle

  • Bottle maximum diameter of 85 mm
  • Bottle maximum height of 250 mm
  • Cap maximum diameter of 85 mm
  • Cap maximum height of 250 mm

Machine controlled with Allen Bradley P.L.C. MicroLogix Multi colors touch screen

HMI – Allen Bradley Panel View 600+ 220 volts, 3 phases, 60 Hz, 15 Amp (or specials request available)

Air at 100 PSI using 20 CFM 21 CFR part 11

Ready Lexan Euroguarding For:

  • press-on cap (rubber stopper, orifice reducer, over cap…) press-on cap with stem/pump screw capping screw capping with stem/pump
  • Pharmaceutical aluminum ring-cap
  • Pharmaceutical aluminum ring-cap with stem/pump
  • ROPP Dual turret design for multiple cap placement Caps with special orientation

Options

  • Pneumatic drive
  • Electric motor drive
  • Servo motor drive
  • Torque confirmation/torque feedback with data management
